[Part 2] Typical Steps of a Raccoon Stealer v2 Infection

Default blog imageDefault blog imageDefault blog imageDefault blog imageDefault blog imageDefault blog image
08
Nov 2022
Since the release of version 2 of Raccoon Stealer, Darktrace’s SOC has observed a surge in activity. See the typical steps used by this new threat!

Raccoon Stealer Malware

Since the release of version 2 of Raccoon Stealer in May 2022, Darktrace has observed huge volumes of Raccoon Stealer v2 infections across its client base. The info-stealer, which seeks to obtain and then exfiltrate sensitive data saved on users’ devices, displays a predictable pattern of network activity once it is executed. In this blog post, we will provide details of this pattern of activity, with the goal of helping security teams to recognize network-based signs of Raccoon Stealer v2 infection within their own networks.

What is Raccoon Stealer?

Raccoon Stealer is a classic example of information-stealing malware, which cybercriminals typically use to gain possession of sensitive data saved in users’ browsers and cryptocurrency wallets. In the case of browsers, targeted data typically includes cookies, saved login details, and saved credit card details. In the case of cryptocurrency wallets (henceforth, ‘crypto-wallets’), targeted data typically includes public keys, private keys, and seed phrases [1]. Once sensitive browser and crypto-wallet data is in the hands of cybercriminals, it will likely be used to conduct harmful activities, such as identity theft, cryptocurrency theft, and credit card fraud.

How do you obtain Raccoon Stealer?

Like most info-stealers, Raccoon Stealer is purchasable. The operators of Raccoon Stealer sell Raccoon Stealer samples to their customers (called ‘affiliates’), who then use the info-stealer to gain possession of sensitive data saved on users’ devices. Raccoon Stealer affiliates typically distribute their samples via SEO-promoted websites providing free or cracked software.

Is Raccoon Stealer Still Active?

On the 25th of March 2022, the operators of Raccoon Stealer announced that they would be suspending their operations because one of their core developers had been killed during the Russia-Ukraine conflict [2]. The presence of the hardcoded RC4 key ‘edinayarossiya’ (Russian for ‘United Russia’) within observed Raccoon Stealer v2 samples [3] provides potential evidence of the Raccoon Stealer operators’ allegiances.

Recent details shared by the US Department of Justice [4]/[5] indicate that it was in fact the arrest, rather than the death, of an operator which led the Raccoon Stealer team to suspend their operations [6]. As a result of the FBI, along with law enforcement partners in Italy and the Netherlands, dismantling Raccoon Stealer infrastructure in March 2022 [4], the Raccoon Stealer team was forced to build a new version of the info-stealer.

On the 17th May 2022, the completion of v2 of the info-stealer was announced on the Raccoon Stealer Telegram channel [7].  Since its release in May 2022, Raccoon Stealer v2 has become extremely popular amongst cybercriminals. The prevalence of Raccoon Stealer v2 in the wider landscape has been reflected in Darktrace’s client base, with hundreds of infections being observed within client networks on a monthly basis.

Since Darktrace’s SOC first saw a Raccoon Stealer v2 infection on the 22nd May 2022, the info-stealer has undergone several subtle changes. However, the info-stealer’s general pattern of network activity has remained essentially unchanged.

How Does Raccoon Stealer v2 Infection Work?

A Raccoon Stealer v2 infection typically starts with a user attempting to download cracked or free software from an SEO-promoted website. Attempting to download software from one of these cracked/free software websites redirects the user’s browser (typically via several .xyz or .cfd endpoints) to a page providing download instructions. In May, June, and July, many of the patterns of download behavior observed by Darktrace’s SOC matched the pattern of behavior observed in a cracked software campaign reported by Avast in June [8].

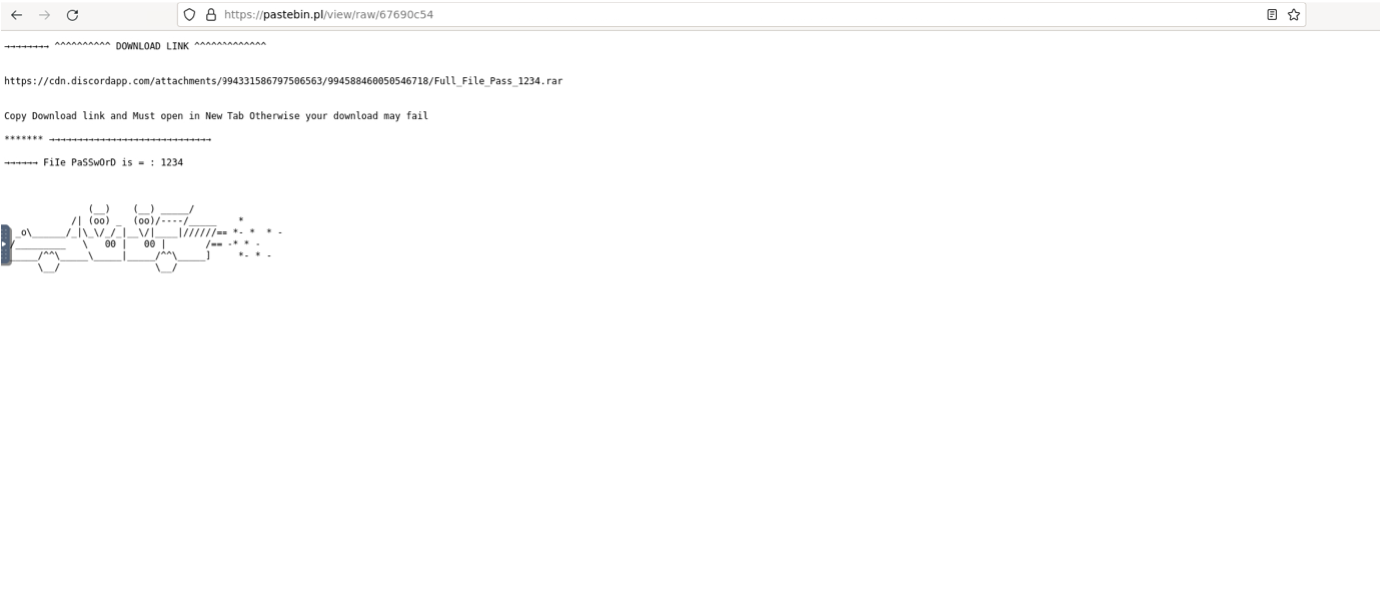

webpage whose download instructions led to a Raccoon Stealer v2
Figure 1: Above is a webpage whose download instructions led to a Raccoon Stealer v2 sample hosted on Discord CDN
example of a webpage whose download instructions led to a Raccoon Stealer v2
Figure 2: Above is an example of a webpage whose download instructions led to a Raccoon Stealer v2 sample hosted on Bitbucket

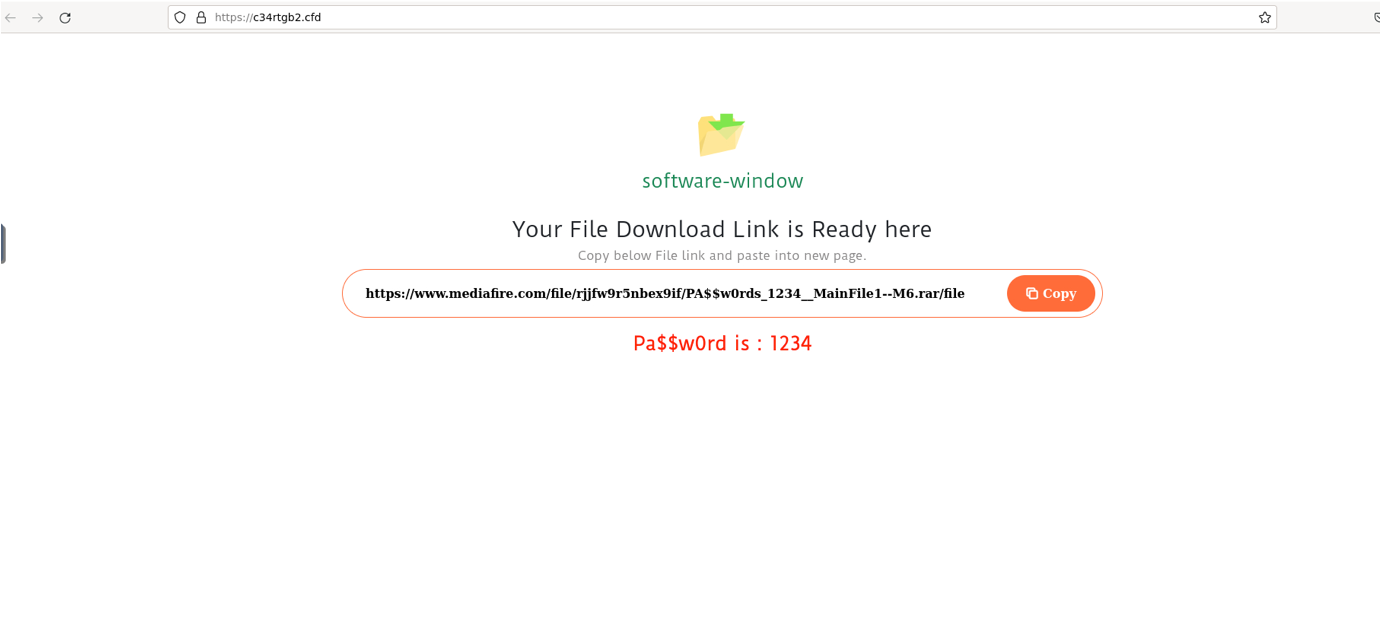

example of a webpage whose download instructions led to a Raccoon Stealer v2
Figure 3: Above is an example of a webpage whose download instructions led to a Raccoon Stealer v2 sample hosted on MediaFire

Following the instructions on the download instruction page causes the user’s device to download a password-protected RAR file from a file storage service such as ‘cdn.discordapp[.]com’, ‘mediafire[.]com’, ‘mega[.]nz’, or ‘bitbucket[.]org’. Opening the downloaded file causes the user’s device to execute Raccoon Stealer v2.

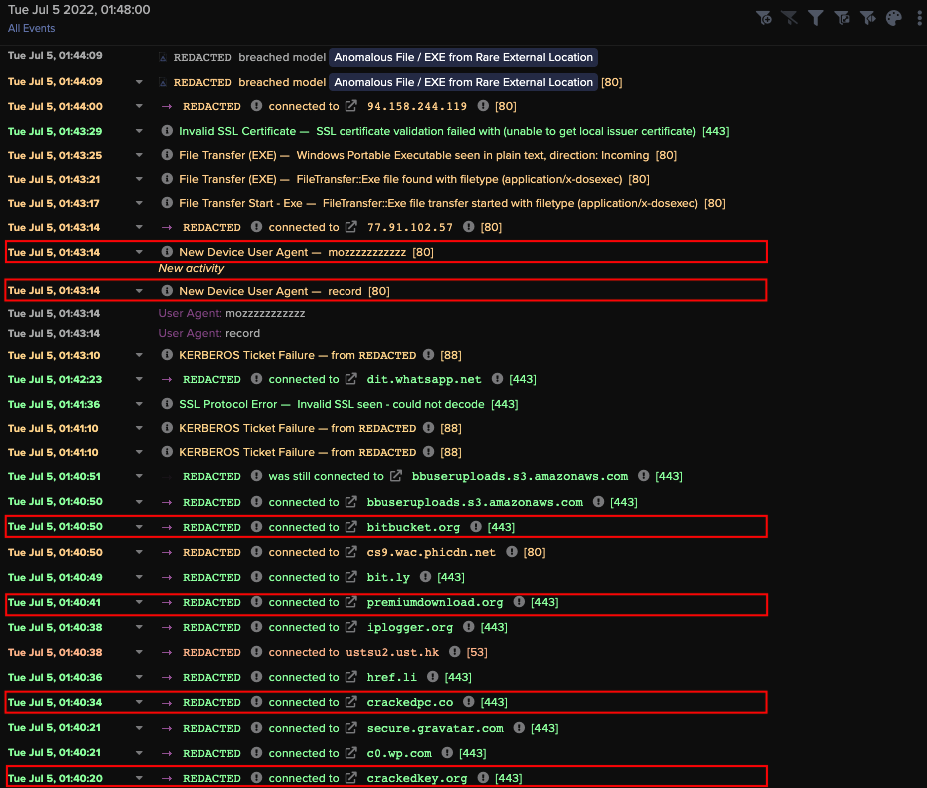

The Event Log for an infected device,
Figure 4: The Event Log for an infected device, taken from Darktrace’s Threat Visualiser interface, shows a device contacting two cracked software websites (‘crackedkey[.]org’ and ‘crackedpc[.]co’) before contacting a webpage (‘premiumdownload[.]org) providing instructions to download Raccoon Stealer v2 from Bitbucket

Once Raccoon Stealer v2 is running on a device, it will make an HTTP POST request with the target URI ‘/’ and an unusual user-agent string (such as ‘record’, ‘mozzzzzzzzzzz’, or ‘TakeMyPainBack’) to a C2 server. This POST request consists of three strings: a machine GUID, a username, and a 128-bit RC4 key [9]. The posted data has the following form:

machineId=X | Y & configId=Z (where X is a machine GUID, Y is a username and Z is a 128-bit RC4 key)

PCAP showing a device making an HTTP POST request with the User Agent header ‘record’
Figure 5:PCAP showing a device making an HTTP POST request with the User Agent header ‘record’
PCAP showing a device making an HTTP POST request with the User Agent header ‘mozzzzzzzzzzz’
Figure 6: PCAP showing a device making an HTTP POST request with the User Agent header ‘mozzzzzzzzzzz’
PCAP showing a device making an HTTP POST request with the User Agent header ‘TakeMyPainBack’
Figure 7: PCAP showing a device making an HTTP POST request with the User Agent header ‘TakeMyPainBack’

The C2 server responds to the info-stealer’s HTTP POST request with custom-formatted configuration details. These configuration details consist of fields which tell the info-stealer what files to download, what data to steal, and what target URI to use in its subsequent exfiltration POST requests. Below is a list of the fields Darktrace has observed in the configuration details retrieved by Raccoon Stealer v2 samples:

  • a ‘libs_mozglue’ field, which specifies a download address for a Firefox library named ‘mozglue.dll’
  • a ‘libs_nss3’ field, which specifies a download address for a Network System Services (NSS) library named ‘nss3.dll’
  • a ‘libs_freebl3’ field, which specifies a download address for a Network System Services (NSS) library named ‘freebl3.dll’
  • a ‘libs_softokn3’ field, which specifies a download address for a Network System Services (NSS) library named ‘softokn3.dll’
  • a ‘libs_nssdbm3’ field, which specifies a download address for a Network System Services (NSS) library named ‘nssdbm3.dll’
  • a ‘libs_sqlite3’ field, which specifies a download address for a SQLite command-line program named ‘sqlite3.dll’
  • a ‘libs_ msvcp140’ field, which specifies a download address for a Visual C++ runtime library named ‘msvcp140.dll’
  • a ‘libs_vcruntime140’ field, which specifies a download address for a Visual C++ runtime library named ‘vcruntime140.dll’
  • a ‘ldr_1’ field, which specifies the download address for a follow-up payload for the sample to download
  • ‘wlts_X’ fields (where X is the name of a crypto-wallet application), which specify data for the sample to obtain from the specified crypto-wallet application
  • ‘ews_X’ fields (where X is the name of a crypto-wallet browser extension), which specify data for the sample to obtain from the specified browser extension
  • ‘xtntns_X’ fields (where X is the name of a password manager browser extension), which specify data for the sample to obtain from the specified browser extension
  • a ‘tlgrm_Telegram’ field, which specifies data for the sample to obtain from the Telegram Desktop application
  • a ‘grbr_Desktop’ field, which specifies data within a local ‘Desktop’ folder for the sample to obtain
  • a ‘grbr_Documents’ field, which specifies data within a local ‘Documents’ folder for the sample to obtain
  • a ‘grbr_Recent’ field, which specifies data within a local ‘Recent’ folder for the sample to obtain
  • a ‘grbr_Downloads’ field, which specifies data within a local ‘Downloads’ folder for the sample to obtain
  • a ‘sstmnfo_System Info.txt’ field, which specifies whether the sample should gather and exfiltrate a profile of the infected host
  • a ‘scrnsht_Screenshot.jpeg’ field, which specifies whether the sample should take and exfiltrate screenshots of the infected host
  • a ‘token’ field, which specifies a 32-length string of hexadecimal digits for the sample to use as the target URI of its HTTP POST requests containing stolen data

After retrieving its configuration data, Raccoon Stealer v2 downloads the library files specified in the ‘libs_’ fields. Unusual user-agent strings (such as ‘record’, ‘qwrqrwrqwrqwr’, and ‘TakeMyPainBack’) are used in the HTTP GET requests for these library files. In all Raccoon Stealer v2 infections seen by Darktrace, the paths of the URLs specified in the ‘libs_’ fields have the following form:

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/X (where X is the name of the targeted DLL file)

Advanced Search logs for an infected host
Figure 8: Advanced Search logs for an infected host, found on Darktrace’s Advanced Search interface, show a device making an HTTP POST request to retrieve configuration details, and then making HTTP GET requests with the User Agent header ‘record’ for DLL files
Advanced Search logs for an infected host
Figure 9: Advanced Search logs for an infected host, found on Darktrace’s Advanced Search interface, show a device making an HTTP POST request to retrieve configuration details, and then making HTTP GET requests with the User Agent header ‘qwrqrwrqwrqwr’ for DLL files
Advanced Search logs for an infected host
Figure 10: Advanced Search logs for an infected host, found on Darktrace’s Advanced Search interface, show a device making an HTTP POST request to retrieve configuration details, and then making HTTP GET requests with the User Agent header ‘TakeMyPainBack’ for DLL files

Raccoon Stealer v2 uses the DLLs which it downloads to gain access to sensitive data (such as cookies, credit card details, and login details) saved in browsers running on the infected host.

Depending on the data provided in the configuration details, Raccoon Stealer v2 will typically seek to obtain, in addition to sensitive data saved in browsers, the following information:

  • Information about the Operating System and applications installed on the infected host
  • Data from specified crypto-wallet software
  • Data from specified crypto-wallet browser extensions
  • Data from specified local folders
  • Data from Telegram Desktop
  • Data from specified password manager browser extensions
  • Screenshots of the infected host

Raccoon Stealer v2 exfiltrates the data which it obtains to its C2 server by making HTTP POST requests with unusual user-agent strings (such as ‘record’, ‘rc2.0/client’, ‘rqwrwqrqwrqw’, and ‘TakeMyPainBack’) and target URIs matching the 32-length string of hexadecimal digits specified in the ‘token’ field of the configuration details. The stolen data exfiltrated by Raccoon Stealer typically includes files named ‘System Info.txt’, ‘---Screenshot.jpeg’, ‘\cookies.txt’, and ‘\passwords.txt’.

Advanced Search logs for an infected host
Figure 11: Advanced Search logs for an infected host, found on Darktrace’s Advanced Search interface, show a device retrieving configuration details via a POST request, downloading several DLLs, and then exfiltrating files named ‘System Info.txt’ and ‘---Screenshot.jpeg’
Advanced Search logs for an infected host
Figure 12: Advanced Search logs for an infected host, found on Darktrace’s Advanced Search interface, show a device retrieving configuration details via a POST request, downloading several DLLs, and then exfiltrating a file named ‘System Info.txt’
Advanced Search logs for an infected host
Figure 13: Advanced Search logs for an infected host, found on Darktrace’s Advanced Search interface, show a device retrieving configuration details via a POST request, downloading several DLLs, and then exfiltrating files named ‘System Info.txt’, ‘\cookies.txt’ and ‘\passwords.txt’

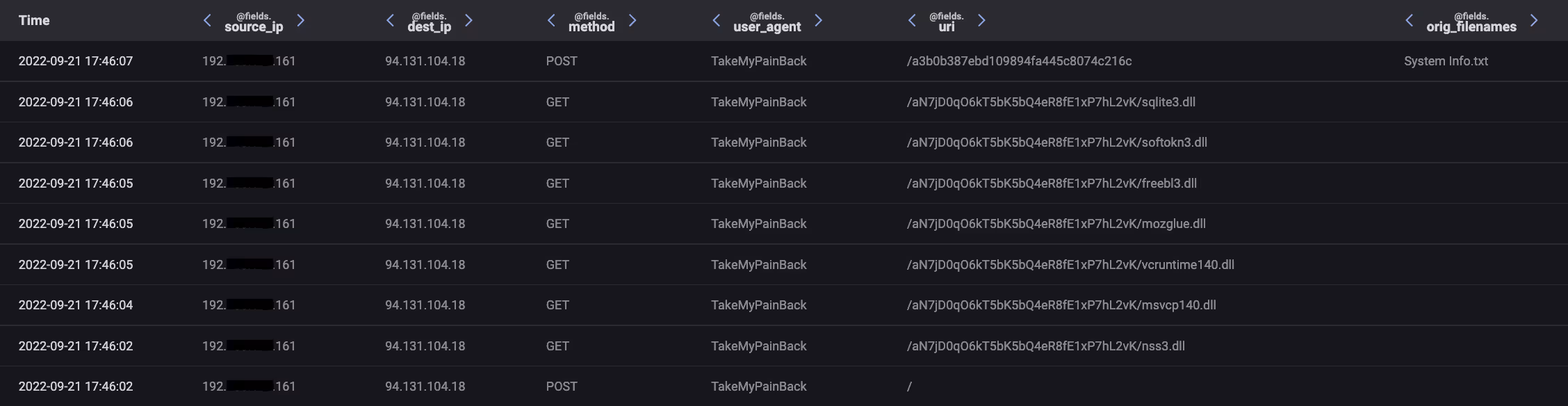

Advanced Search logs for an infected host
Figure 14: Advanced Search logs for an infected host, found on Darktrace’s Advanced Search interface, show a device retrieving configuration details via a POST request, downloading several DLLs, and then exfiltrating a file named ‘System Info.txt’

If a ‘ldr_1’ field is present in the retrieved configuration details, then Raccoon Stealer will complete its operation by downloading the binary file specified in the ‘ldr_1’ field. In all observed cases, the paths of the URLs specified in the ‘ldr_1’ field end in a sequence of digits, followed by ‘.bin’. The follow-up payload seems to vary between infections, likely due to this additional-payload feature being customizable by Raccoon Stealer affiliates. In many cases, the info-stealer, CryptBot, was delivered as the follow-up payload.

Darktrace Coverage of Raccoon Stealer

Once a user’s device becomes infected with Raccoon Stealer v2, it will immediately start to communicate over HTTP with a C2 server. The HTTP requests made by the info-stealer have an empty Host header (although Host headers were used by early v2 samples) and highly unusual User Agent headers. When Raccoon Stealer v2 was first observed in May 2022, the user-agent string ‘record’ was used in its HTTP requests. Since then, it appears that the operators of Raccoon Stealer have made several changes to the user-agent strings used by the info-stealer,  likely in an attempt to evade signature-based detections. Below is a timeline of the changes to the info-stealer’s user-agent strings, as observed by Darktrace’s SOC:

  • 22nd May 2022: Samples seen using the user-agent string ‘record’
  • 2nd July 2022: Samples seen using the user-agent string ‘mozzzzzzzzzzz’
  • 29th July 2022: Samples seen using the user-agent string ‘rc2.0/client’
  • 10th August 2022: Samples seen using the user-agent strings ‘qwrqrwrqwrqwr’ and ‘rqwrwqrqwrqw’
  • 16th Sep 2022: Samples seen using the user-agent string ‘TakeMyPainBack’

The presence of these highly unusual user-agent strings within infected devices’ HTTP requests causes the following Darktrace DETECT/Network models to breach:

  • Device / New User Agent
  • Device / New User Agent and New IP
  • Anomalous Connection / New User Agent to IP Without Hostname
  • Device / Three or More New User Agents

These DETECT models look for devices making HTTP requests with unusual user-agent strings, rather than specific user-agent strings which are known to be malicious. This method of detection enables the models to continually identify Raccoon Stealer v2 HTTP traffic, despite the changes made to the info-stealer’s user-agent strings.

After retrieving configuration details from a C2 server, Raccoon Stealer v2 samples make HTTP GET requests for several DLL libraries. Since these GET requests are directed towards highly unusual IP addresses, the downloads of the DLLs cause the following DETECT models to breach:

  • Anomalous File / EXE from Rare External Location
  • Anomalous File / Script from Rare External Location
  • Anomalous File / Multiple EXE from Rare External Locations

Raccoon Stealer v2 samples send data to their C2 server via HTTP POST requests with an absent Host header. Since these POST requests lack a Host header and have a highly unusual destination IP, their occurrence causes the following DETECT model to breach:

  • Anomalous Connection / Posting HTTP to IP Without Hostname

Certain Raccoon Stealer v2 samples download (over HTTP) a follow-up payload once they have exfiltrated data. Since the target URIs of the HTTP GET requests made by v2 samples end in a sequence of digits followed by ‘.bin’, the samples’ downloads of follow-up payloads cause the following DETECT model to breach:

  • Anomalous File / Numeric File Download

If Darktrace RESPOND/Network is configured within a customer’s environment, then Raccoon Stealer v2 activity should cause the following inhibitive actions to be autonomously taken on infected systems:

  • Enforce pattern of life — This action results in a device only being able to make connections which are normal for it to make
  • Enforce group pattern of life — This action results in a device only being able to make connections which are normal for it or any of its peers to make
  • Block matching connections — This action results in a device being unable to make connections to particular IP/Port pairs
  • Block all outgoing traffic — This action results in a device being unable to make any connections
The Event Log for an infected device
Figure 15: The Event Log for an infected device, taken from Darktrace’s Threat Visualiser interface, shows Darktrace RESPOND taking inhibitive actions in response to the HTTP activities of a Raccoon Stealer v2 sample downloaded from MediaFire

Given that Raccoon Stealer v2 infections move extremely fast, with the time between initial infection and data exfiltration sometimes less than a minute, the availability of Autonomous Response technology such as Darktrace RESPOND is vital for the containment of Raccoon Stealer v2 infections.

Timeline of Darktrace stopping raccoon stealer.
Figure 16: Figure displaying the steps of a Raccoon Stealer v2 infection, along with the corresponding Darktrace detections

Conclusion

Since the release of Raccoon Stealer v2 back in 2022, the info-stealer has relentlessly infected the devices of unsuspecting users. Once the info-stealer infects a user’s device, it retrieves and then exfiltrates sensitive information within a matter of minutes. The distinctive pattern of network behavior displayed by Raccoon Stealer v2 makes the info-stealer easy to spot. However, the changes which the Raccoon Stealer operators make to the User Agent headers of the info-stealer’s HTTP requests make anomaly-based methods key for the detection of the info-stealer’s HTTP traffic. The operators of Raccoon Stealer can easily change the superficial features of their malware’s C2 traffic, however, they cannot easily change the fact that their malware causes highly unusual network behavior. Spotting this behavior, and then autonomously responding to it, is likely the best bet which organizations have at stopping a Raccoon once it gets inside their networks.

Thanks to the Threat Research Team for its contributions to this blog.

References

[1] https://www.microsoft.com/security/blog/2022/05/17/in-hot-pursuit-of-cryware-defending-hot-wallets-from-attacks/

[2] https://twitter.com/3xp0rtblog/status/1507312171914461188

[3] https://www.esentire.com/blog/esentire-threat-intelligence-malware-analysis-raccoon-stealer-v2-0

[4] https://www.justice.gov/usao-wdtx/pr/newly-unsealed-indictment-charges-ukrainian-national-international-cybercrime-operation

[5] https://www.youtube.com/watch?v=Fsz6acw-ZJ

[6] https://riskybiznews.substack.com/p/raccoon-stealer-dev-didnt-die-in

[7] https://medium.com/s2wblog/raccoon-stealer-is-back-with-a-new-version-5f436e04b20d

[8] https://blog.avast.com/fakecrack-campaign

[9] https://blog.sekoia.io/raccoon-stealer-v2-part-2-in-depth-analysis/

Appendices

MITRE ATT&CK Mapping

Resource Development

• T1588.001 — Obtain Capabilities: Malware

• T1608.001 — Stage Capabilities: Upload Malware

• T1608.005 — Stage Capabilities: Link Target

• T1608.006 — Stage Capabilities: SEO Poisoning

Execution

•  T1204.002 — User Execution: Malicious File

Credential Access

• T1555.003 — Credentials from Password Stores:  Credentials from Web Browsers

• T1555.005 — Credentials from Password Stores:  Password Managers

• T1552.001 — Unsecured Credentials: Credentials  In Files

Command and Control

•  T1071.001 — Application Layer Protocol: Web Protocols

•  T1105 — Ingress Tool Transfer

IOCS

Type

IOC

Description

User-Agent String

record

String used in User Agent header of  Raccoon Stealer v2’s HTTP requests

User-Agent  String

mozzzzzzzzzzz

String used inUser Agent header of Raccoon Stealer v2’s HTTP requests

User-Agent String

rc2.0/client

String used in User Agent header of  Raccoon Stealer v2’s HTTP requests

User-Agent  String

qwrqrwrqwrqwr

String used in  User Agent header of Raccoon Stealer v2’s HTTP requests

User-Agent String

rqwrwqrqwrqw

String used in User Agent header of  Raccoon Stealer v2’s HTTP requests

User-Agent  String

TakeMyPainBack

String used in  User Agent header of Raccoon Stealer v2’s HTTP requests

Domain Name

brain-lover[.]xyz

Raccoon Stealer v2 C2 infrastructure

Domain  Name

polar-gift[.]xyz

Raccoon Stealer  v2 C2 infrastructure

Domain Name

cool-story[.]xyz

Raccoon Stealer v2 C2 infrastructure

Domain  Name

fall2sleep[.]xyz

Raccoon Stealer  v2 C2 infrastructure

Domain Name

broke-bridge[.]xyz

Raccoon Stealer v2 C2 infrastructure

Domain  Name

use-freedom[.]xyz

Raccoon Stealer  v2 C2 infrastructure

Domain Name

just-trust[.]xyz

Raccoon Stealer v2 C2 infrastructure

Domain  Name

soft-viper[.]site

Raccoon Stealer  v2 C2 infrastructure

Domain Name

tech-lover[.]xyz

Raccoon Stealer v2 C2 infrastructure

Domain  Name

heal-brain[.]xyz

Raccoon Stealer  v2 C2 infrastructure

Domain Name

love-light[.]xyz

Raccoon Stealer v2 C2 infrastructure

IP  Address

104.21.80[.]14

Raccoon Stealer  v2 C2 infrastructure

IP Address

107.152.46[.]84

Raccoon Stealer v2 C2 infrastructure

IP  Address

135.181.147[.]255

Raccoon Stealer  v2 C2 infrastructure

IP Address

135.181.168[.]157

Raccoon Stealer v2 C2 infrastructure

IP  Address

138.197.179[.]146

Raccoon Stealer  v2 C2 infrastructure

IP Address

141.98.169[.]33

Raccoon Stealer v2 C2 infrastructure

IP  Address

146.19.170[.]100

Raccoon Stealer  v2 C2 infrastructure

IP Address

146.19.170[.]175

Raccoon Stealer v2 C2 infrastructure

IP  Address

146.19.170[.]98

Raccoon Stealer  v2 C2 infrastructure

IP Address

146.19.173[.]33

Raccoon Stealer v2 C2 infrastructure

IP  Address

146.19.173[.]72

Raccoon Stealer  v2 C2 infrastructure

IP Address

146.19.247[.]175

Raccoon Stealer v2 C2 infrastructure

IP  Address

146.19.247[.]177

Raccoon Stealer  v2 C2 infrastructure

IP Address

146.70.125[.]95

Raccoon Stealer v2 C2 infrastructure

IP  Address

152.89.196[.]234

Raccoon Stealer  v2 C2 infrastructure

IP Address

165.225.120[.]25

Raccoon Stealer v2 C2 infrastructure

IP  Address

168.100.10[.]238

Raccoon Stealer  v2 C2 infrastructure

IP Address

168.100.11[.]23

Raccoon Stealer v2 C2 infrastructure

IP  Address

168.100.9[.]234

Raccoon Stealer  v2 C2 infrastructure

IP Address

170.75.168[.]118

Raccoon Stealer v2 C2 infrastructure

IP  Address

172.67.173[.]14

Raccoon Stealer  v2 C2 infrastructure

IP Address

172.86.75[.]189

Raccoon Stealer v2 C2 infrastructure

IP  Address

172.86.75[.]33

Raccoon Stealer  v2 C2 infrastructure

IP Address

174.138.15[.]216

Raccoon Stealer v2 C2 infrastructure

IP  Address

176.124.216[.]15

Raccoon Stealer  v2 C2 infrastructure

IP Address

185.106.92[.]14

Raccoon Stealer v2 C2 infrastructure

IP  Address

185.173.34[.]161

Raccoon Stealer  v2 C2 infrastructure

IP Address

185.173.34[.]161

Raccoon Stealer v2 C2 infrastructure

IP  Address

185.225.17[.]198

Raccoon Stealer  v2 C2 infrastructure

IP Address

185.225.19[.]190

Raccoon Stealer v2 C2 infrastructure

IP  Address

185.225.19[.]229

Raccoon Stealer  v2 C2 infrastructure

IP Address

185.53.46[.]103

Raccoon Stealer v2 C2 infrastructure

IP  Address

185.53.46[.]76

Raccoon Stealer  v2 C2 infrastructure

IP Address

185.53.46[.]77

Raccoon Stealer v2 C2 infrastructure

IP  Address

188.119.112[.]230

Raccoon Stealer  v2 C2 infrastructure

IP Address

190.117.75[.]91

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.106.191[.]182

Raccoon Stealer  v2 C2 infrastructure

IP Address

193.149.129[.]135

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.149.129[.]144

Raccoon Stealer  v2 C2 infrastructure

IP Address

193.149.180[.]210

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.149.185[.]192

Raccoon Stealer  v2 C2 infrastructure

IP Address

193.233.193[.]50

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.43.146[.]138

Raccoon Stealer  v2 C2 infrastructure

IP Address

193.43.146[.]17

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.43.146[.]192

Raccoon Stealer  v2 C2 infrastructure

IP Address

193.43.146[.]213

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.43.146[.]214

Raccoon Stealer  v2 C2 infrastructure

IP Address

193.43.146[.]215

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.43.146[.]26

Raccoon Stealer  v2 C2 infrastructure

IP Address

193.43.146[.]45

Raccoon Stealer v2 C2 infrastructure

IP  Address

193.56.146[.]177

Raccoon Stealer  v2 C2 infrastructure

IP Address

194.180.174[.]180

Raccoon Stealer v2 C2 infrastructure

IP  Address

195.201.148[.]250

Raccoon Stealer  v2 C2 infrastructure

IP Address

206.166.251[.]156

Raccoon Stealer v2 C2 infrastructure

IP  Address

206.188.196[.]200

Raccoon Stealer  v2 C2 infrastructure

IP Address

206.53.53[.]18

Raccoon Stealer v2 C2 infrastructure

IP  Address

207.154.195[.]173

Raccoon Stealer  v2 C2 infrastructure

IP Address

213.252.244[.]2

Raccoon Stealer v2 C2 infrastructure

IP  Address

38.135.122[.]210

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.10.20[.]248

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.11.19[.]99

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.133.216[.]110

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.133.216[.]145

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.133.216[.]148

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.133.216[.]249

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.133.216[.]71

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.140.146[.]169

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.140.147[.]245

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.142.212[.]100

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.142.213[.]24

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.142.215[.]91

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.142.215[.]91

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.142.215[.]92

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.144.29[.]18

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.144.29[.]243

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.15.156[.]11

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.15.156[.]2

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.15.156[.]31

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.15.156[.]31

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.150.67[.]156

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.153.230[.]183

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.153.230[.]228

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.159.251[.]163

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.159.251[.]164

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.61.136[.]67

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.61.138[.]162

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.67.228[.]8

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.67.231[.]202

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.67.34[.]152

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.67.34[.]234

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.8.144[.]187

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.8.144[.]54

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.8.144[.]55

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.8.145[.]174

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.8.145[.]83

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.8.147[.]39

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.8.147[.]79

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.84.0.152

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.86.86[.]78

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.89.54[.]110

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.89.54[.]110

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.89.54[.]95

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.89.55[.]115

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.89.55[.]117

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.89.55[.]193

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.89.55[.]198

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.89.55[.]20

Raccoon Stealer  v2 C2 infrastructure

IP Address

45.89.55[.]84

Raccoon Stealer v2 C2 infrastructure

IP  Address

45.92.156[.]150

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.182.36[.]154

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.182.36[.]230

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.182.36[.]231

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.182.36[.]232

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.182.36[.]233

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.182.39[.]34

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.182.39[.]74

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.182.39[.]75

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.182.39[.]77

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.252.118[.]33

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.252.176[.]62

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.252.177[.]217

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.252.177[.]234

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.252.177[.]43

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.252.177[.]47

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.252.177[.]92

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.252.177[.]98

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.252.22[.]142

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.252.23[.]100

Raccoon Stealer v2 C2 infrastructure

IP  Address

5.252.23[.]25

Raccoon Stealer  v2 C2 infrastructure

IP Address

5.252.23[.]76

Raccoon Stealer v2 C2 infrastructure

IP  Address

51.195.166[.]175

Raccoon Stealer  v2 C2 infrastructure

IP Address

51.195.166[.]176

Raccoon Stealer v2 C2 infrastructure

IP  Address

51.195.166[.]194

Raccoon Stealer  v2 C2 infrastructure

IP Address

51.81.143[.]169

Raccoon Stealer v2 C2 infrastructure

IP  Address

62.113.255[.]110

Raccoon Stealer  v2 C2 infrastructure

IP Address

65.109.3[.]107

Raccoon Stealer v2 C2 infrastructure

IP  Address

74.119.192[.]56

Raccoon Stealer  v2 C2 infrastructure

IP Address

74.119.192[.]73

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.232.39[.]101

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.73.133[.]0

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.73.133[.]4

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.73.134[.]45

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.75.230[.]25

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.75.230[.]39

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.75.230[.]70

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.75.230[.]93

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.91.100[.]101

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.91.102[.]12

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.91.102[.]230

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.91.102[.]44

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.91.102[.]57

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.91.102[.]84

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.91.103[.]31

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.91.73[.]154

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.91.73[.]213

Raccoon Stealer  v2 C2 infrastructure

IP Address

77.91.73[.]32

Raccoon Stealer v2 C2 infrastructure

IP  Address

77.91.74[.]67

Raccoon Stealer  v2 C2 infrastructure

IP Address

78.159.103[.]195

Raccoon Stealer v2 C2 infrastructure

IP  Address

78.159.103[.]196

Raccoon Stealer  v2 C2 infrastructure

IP Address

80.66.87[.]23

Raccoon Stealer v2 C2 infrastructure

IP  Address

80.66.87[.]28

Raccoon Stealer  v2 C2 infrastructure

IP Address

80.71.157[.]112

Raccoon Stealer v2 C2 infrastructure

IP  Address

80.71.157[.]138

Raccoon Stealer  v2 C2 infrastructure

IP Address

80.92.204[.]202

Raccoon Stealer v2 C2 infrastructure

IP  Address

87.121.52[.]10

Raccoon Stealer  v2 C2 infrastructure

IP Address

88.119.175[.]187

Raccoon Stealer v2 C2 infrastructure

IP  Address

89.185.85[.]53

Raccoon Stealer  v2 C2 infrastructure

IP Address

89.208.107[.]42

Raccoon Stealer v2 C2 infrastructure

IP  Address

89.39.106[.]78

Raccoon Stealer  v2 C2 infrastructure

IP Address

91.234.254[.]126

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.131.104[.]16

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.131.104[.]17

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.131.104[.]18

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.131.106[.]116

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.131.106[.]224

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.131.107[.]132

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.131.107[.]138

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.131.96[.]109

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.131.97[.]129

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.131.97[.]53

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.131.97[.]56

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.131.97[.]57

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.131.98[.]5

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.158.244[.]114

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.158.244[.]119

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.158.244[.]21

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.158.247[.]24

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.158.247[.]26

Raccoon Stealer v2 C2 infrastructure

IP  Address

94.158.247[.]30

Raccoon Stealer  v2 C2 infrastructure

IP Address

94.158.247[.]44

Raccoon Stealer v2 C2 infrastructure

IP  Address

95.216.109[.]16

Raccoon Stealer  v2 C2 infrastructure

IP Address

95.217.124[.]179

Raccoon Stealer v2 C2 infrastructure

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/mozglue.dll

URI used in  download of library file

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/nss3.dll

URI used in download of library file

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/freebl3.dll

URI used in  download of library file

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/softokn3.dll

URI used in download of library file

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/nssdbm3.dll

URI used in  download of library file

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/sqlite3.dll

URI used in download of library file

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/msvcp140.dll

URI used in  download of library file

URI

/aN7jD0qO6kT5bK5bQ4eR8fE1xP7hL2vK/vcruntime140.dll

URI used in download of library file

URI

/C9S2G1K6I3G8T3X7/56296373798691245143.bin

URI used in  download of follow-up payload

URI

/O6K3E4G6N9S8S1/91787438215733789009.bin

URI used in download of follow-up  payload

URI

/Z2J8J3N2S2Z6X2V3S0B5/45637662345462341.bin

URI used in  download of follow-up payload

URI

/rgd4rgrtrje62iuty/19658963328526236.bin

URI used in download of follow-up  payload

URI

/sd325dt25ddgd523/81852849956384.bin

URI used in  download of follow-up payload

URI

/B0L1N2H4R1N5I5S6/40055385413647326168.bin

URI used in download of follow-up  payload

URI

/F5Q8W3O3O8I2A4A4B8S8/31427748106757922101.bin

URI used in  download of follow-up payload

URI

/36141266339446703039.bin

URI used in download of follow-up  payload

URI

/wH0nP0qH9eJ6aA9zH1mN/1.bin

URI used in  download of follow-up payload

URI

/K2X2R1K4C6Z3G8L0R1H0/68515718711529966786.bin

URI used in download of follow-up  payload

URI

/C3J7N6F6X3P8I0I0M/17819203282122080878.bin

URI used in  download of follow-up payload

URI

/W9H1B8P3F2J2H2K7U1Y7G5N4C0Z4B/18027641.bin

URI used in download of follow-up  payload

URI

/P2T9T1Q6P7Y5J3D2T0N0O8V/73239348388512240560937.bin

URI used in  download of follow-up payload

URI

/W5H6O5P0E4Y6P8O1B9D9G0P9Y9G4/671837571800893555497.bin

URI used in download of follow-up  payload

URI

/U8P2N0T5R0F7G2J0/898040207002934180145349.bin

URI used in  download of follow-up payload

URI

/AXEXNKPSBCKSLMPNOMNRLUEPR/3145102300913020.bin

URI used in download of follow-up  payload

URI

/wK6nO2iM9lE7pN7e/7788926473349244.bin

URI used in  download of follow-up payload

URI

/U4N9B5X5F5K2A0L4L4T5/84897964387342609301.bin

URI used in download of follow-up  payload

Inside the SOC
Darktrace cyber analysts are world-class experts in threat intelligence, threat hunting and incident response, and provide 24/7 SOC support to thousands of Darktrace customers around the globe. Inside the SOC is exclusively authored by these experts, providing analysis of cyber incidents and threat trends, based on real-world experience in the field.
Author
Sam Lister
SOC Analyst
Watch the NIS2 Webinar
Book a 1-1 meeting with one of our experts
Get in touch
Share this article
Trending blogs
1
The State of AI in Cybersecurity: The Impact of AI on Cybersecurity Solutions
May 13, 2024
2
How Empowering End Users can Improve Your Email Security and Decrease the Burden on the SOC
May 8, 2024
3
Elevating Network Security: Confronting Trust, Ransomware, & Novel Attacks
Jun 21, 2024
4
The State of AI in Cybersecurity: Unveiling Global Insights from 1,800 Security Practitioners
Apr 9, 2024
5

More in this series

No items found.

Blog

/

December 11, 2024

/
No items found.

Darktrace’s view on Operation Lunar Peek: Exploitation of Palo Alto firewall devices (CVE 2024-2012 and 2024-9474)

Default blog imageDefault blog image

Introduction: Spike in exploitation and post-exploitation activity affecting Palo Alto firewall devices

As the first line of defense for many organizations, perimeter devices such as firewalls are frequently targeted by threat actors. If compromised, these devices can serve as the initial point of entry to the network, providing access to vulnerable internal resources. This pattern of malicious behavior has become readily apparent within the Darktrace customer base. In 2024, Darktrace Threat Research analysts identified and investigated at least two major campaigns targeting internet-exposed perimeter devices. These included the exploitation of PAN-OS firewall exploitation via CVE 2024-3400 and FortiManager appliances via CVE 2024-47575.

More recently, at the end of November, Darktrace analysts observed a spike in exploitation and post-exploitation activity affecting, once again, Palo Alto firewall devices in the days following the disclosure of the CVE 2024-0012 and CVE-2024-9474 vulnerabilities.

Threat Research analysts had already been investigating potential exploitation of the firewalls’ management interface after Palo Alto published a security advisory (PAN-SA-2024-0015) on November 8. Subsequent analysis of data from Darktrace’s Security Operations Center (SOC) and external research uncovered multiple cases of Palo Alto firewalls being targeted via the likely exploitation of these vulnerabilities since November 13, through the end of the month. Although this spike in anomalous behavior may not be attributable to a single malicious actor, Darktrace Threat Research identified a clear increase in PAN-OS exploitation across the customer base by threat actors likely utilizing the recently disclosed vulnerabilities, resulting in broad patterns of post-exploitation activity.

How did exploitation occur?

CVE 2024-0012 is an authentication bypass vulnerability affecting unpatched versions of Palo Alto Networks Next-Generation Firewalls. The vulnerability resides in the management interface application on the firewalls specifically, which is written in PHP. When attempting to access highly privileged scripts, users are typically redirected to a login page. However, this can be bypassed by supplying an HTTP request where a Palo Alto related authentication header can be set to “off”.  Users can supply this header value to the Nginx reverse proxy server fronting the application which will then send it without any prior processing [1].

CVE-2024-9474 is a privilege escalation vulnerability that allows a PAN-OS administrator with access to the management web interface to execute root-level commands, granting full control over the affected device [2]. When combined, these vulnerabilities enable unauthenticated adversaries to execute arbitrary commands on the firewall with root privileges.

Post-Exploitation Patterns of Activity

Darktrace Threat Research analysts examined potential indicators of PAN-OS software exploitation via CVE 2024-0012 and CVE-2024-9474 during November 2024. The investigation identified three main groupings of post-exploitation activity:

  1. Exploit validation and initial payload retrieval
  2. Command and control (C2) connectivity, potentially featuring further binary downloads
  3. Potential reconnaissance and cryptomining activity

Exploit Validation

Across multiple investigated customers, Darktrace analysts identified likely vulnerable PAN-OS devices conducting external network connectivity to bin services. Specifically, several hosts performed DNS queries for, and HTTP requests to Out-of-Band Application Security Testing (OAST) domains, such as csv2im6eq58ujueonqs0iyq7dqpak311i.oast[.]pro. These endpoints are commonly used by network administrators to harden defenses, but they are increasingly used by threat actors to verify successful exploitation of targeted devices and assess their potential for further compromise. Although connectivity involving OAST domains were prevalent across investigated incidents, this activity was not necessarily the first indicator observed. In some cases, device behavior involving OAST domains also occurred shortly after an initial payload was downloaded.

Darktrace model alert logs detailing the HTTP request to an OAST domain immediately following PAN-OS device compromise.
Figure 1: Darktrace model alert logs detailing the HTTP request to an OAST domain immediately following PAN-OS device compromise.

Initial Payload Retrieval

Following successful exploitation, affected devices commonly performed behaviors indicative of initial payload download, likely in response to incoming remote command execution. Typically, the affected PAN-OS host would utilize the command line utilities curl and Wget, seen via use of user agents curl/7.61.1 and Wget/1.19.5 (linux-gnu), respectively.

In some cases, the use of these command line utilities by the infected devices was considered new behavior. Given the nature of the user agents, interaction with the host shell suggests remote command execution to achieve the outgoing payload requests.

While additional binaries and scripts were retrieved in later stages of the post-exploitation activity in some cases, this set of behaviors and payloads likely represent initial persistence and execution mechanisms that will enable additional functionality later in the kill chain. During the investigation, Darktrace analysts noted the prevalence of shell script payload requests. Devices analyzed would frequently make HTTP requests over the usual destination port 80 using the command line URL utility (curl), as seen in the user-agent field.

The observed URIs often featured requests for text files, such as “1.txt”, or shell scripts such as “y.sh”. Although packet capture (PCAP) samples were unavailable for review, external researchers have noted that the IP address hosting such “1.txt” files (46.8.226[.]75) serves malicious PHP payloads. When examining the contents of the “y.sh” shell script, Darktrace analysts noticed the execution of bash commands to upload a PHP-written web shell on the affected server.

PCAP showing the client request and server response associated with the download of the y.sh script from 45.76.141[.]166. The body content of the HTTP response highlights a shebang command to run subsequent code as bash script. The content is base64 encoded and details PHP script for what appears to be a webshell that will likely be written to the firewall device.
Figure 2: PCAP showing the client request and server response associated with the download of the y.sh script from 45.76.141[.]166. The body content of the HTTP response highlights a shebang command to run subsequent code as bash script. The content is base64 encoded and details PHP script for what appears to be a webshell that will likely be written to the firewall device.

While not all investigated cases saw initial shell script retrieval, affected systems would commonly make an external HTTP connection, almost always via Wget, for the Executable and Linkable Format (ELF) file “/palofd” from the rare external IP  38.180.147[.]18.

Such requests were frequently made without prior hostname lookups, suggesting that the process or script initiating the requests already contained the external IP address. Analysts noticed a consistent SHA1 hash present for all identified instances of “/palofd” downloads (90f6890fa94b25fbf4d5c49f1ea354a023e06510). Multiple open-source intelligence (OSINT) vendors have associated this hash sample with Spectre RAT, a remote access trojan with capabilities including remote command execution, payload delivery, process manipulation, file transfers, and data theft [3][4].

Figure 3: Advanced Search log metrics highlighting details of the “/palofd” file download over HTTP.

Several targeted customer devices were observed initiating TLS/SSL connections to rare external IPs with self-signed TLS certificates following exploitation. Model data from across the Darktrace fleet indicated some overlap in JA3 fingerprints utilized by affected PAN-OS devices engaging in the suspicious TLS activity. Although JA3 hashes alone cannot be used for process attribution, this evidence suggests some correlation of source process across instances of PAN-OS exploitation.

These TLS/SSL sessions were typically established without the specification of a Server Name Indication (SNI) within the TLS extensions. The SNI extension prevents servers from supplying an incorrect certificate to the requesting client when multiple sites are hosted on the same IP. SSL connectivity without SNI specification suggests a potentially malicious running process as most software establishing TLS sessions typically supply this information during the handshake. Although the encrypted nature of the connection prevented further analysis of the payload packets, external sources note that JavaScript content is transmitted during these sessions, serving as initial payloads for the Sliver C2 platform using Wget [5].

C2 Communication and Additional Payloads

Following validation and preliminary post-compromise actions, examined hosts would commonly initiate varying forms of C2 connectivity. During this time, devices were frequently detected making further payload downloads, likely in response to directives set within C2 communications.

Palo Alto firewalls likely exploited via the newly disclosed CVEs would commonly utilize the Sliver C2 platform for external communication. Sliver’s functionality allows for different styles and formatting for communication. An open-source alternative to Cobalt Strike, this framework has been increasingly popular among threat actors, enabling the generation of dynamic payloads (“slivers”) for multiple platforms, including Windows, MacOS, Linux.

These payloads allow operators to establish persistence, spawn new shells, and exfiltrate data. URI patterns and PCAPs analysis yielded evidence of both English word type encoding within Sliver and Gzip formatting.

For example, multiple devices contacted the Sliver-linked IP address 77.221.158[.]154 using HTTP to retrieve Gzip files. The URIs present for these requests follow known Sliver Gzip formatted communication patterns [6]. Investigations yielded evidence of both English word encoding within Sliver, identified through PCAP analysis, and Gzip formatting.

Sample of URIs observed in Advanced Searchhighlighting HTTP requests to 77.221.158[.]154 for Gzip content suggest of Sliver communication.
Figure 4: Sample of URIs observed in Advanced Searchhighlighting HTTP requests to 77.221.158[.]154 for Gzip content suggest of Sliver communication.
PCAP showing English word encoding for Sliver communication observed during post-exploitation C2 activity.
Figure 5: PCAP showing English word encoding for Sliver communication observed during post-exploitation C2 activity.

External connectivity during this phase also featured TCP connection attempts over uncommon ports for common application protocols. For both Sliver and non-Sliver related IP addresses, devices utilized destination ports such as 8089, 3939, 8880, 8084, and 9999 for the HTTP protocol. The use of uncommon destination ports may represent attempts to avoid detection of connectivity to rare external endpoints. Moreover, some external beaconing within included URIs referencing the likely IP of the affected device. Such behavior can suggest the registration of compromised devices with command servers.

Targeted devices also proceeded to download additional payloads from rare external endpoints as beaconing/C2 activity was ongoing. For example, the newly registered domain repositorylinux[.]org (IP: 103.217.145[.]112) received numerous HTTP GET requests from investigated devices throughout the investigation period for script files including “linux.sh” and “cron.sh”. Young domains, especially those that present as similar to known code repositories, tend to host harmful content. Packet captures of the cron.sh file reveal commands within the HTTP body content involving crontab operations, likely to schedule future downloads. Some hosts that engaged in connectivity to the fake repository domain were later seen conducting crypto-mining connections, potentially highlighting the download of miner applications from the domain.

Additional payloads observed during this time largely featured variations of shell scripts, PHP content, and/or executables. Typically, shell scripts direct the device to retrieve additional content from external servers or repositories or contain potential configuration details for subsequent binaries to run on the device. For example, the “service.sh” retrieves a tar-compressed archive, a configuration JSON file as well as a file with the name “solr” from GitHub, potentially associated with the Apache Solr tool used for enterprise search. These could be used for further enumeration of the host and/or the network environment. PHP scripts observed may involve similar web shell functionality and were retrieved from both rare external IPs identified as well by external researchers [7]. Darktrace also detected the download of octet-stream data occurring mid-compromise from an Amazon Web Services (AWS) S3 bucket. Although no outside research confirmed the functionality, additional executable downloads for files such as “/initd”(IP: 178.215.224[.]246) and “/x6” (IP: 223.165.4[.]175) may relate to tool ingress, further Trojan/backdoor functionality, or cryptocurrency mining.

Figure 7: PCAP specifying the HTTP response headers and body content for the service.sh file request. The body content shown includes variable declarations for URLs that will eventually be called by the device shell via bash command.

Reconnaissance and Cryptomining

Darktrace analysts also noticed additional elements of kill chain operations from affected devices after periods of initial exploit activity. Several devices initiated TCP connections to endpoints affiliated with cryptomining pools such as us[.]zephyr[.]herominers[.]com and  xmrig[.]com. Connectivity to these domains indicates likely successful installation of mining software during earlier stages of post-compromise activity. In a small number of instances, Darktrace observed reconnaissance and lateral movement within the time range of PAN-OS exploitation. Firewalls conducted large numbers of internal connectivity attempts across several critical ports related to privileged protocols, including SMB and SSH. Darktrace detected anonymous NTLM login attempts and new usage of potential PAN-related credentials. These behaviors likely constitute attempts at lateral movement to adjacent devices to further extend network compromise impact.

Model alert connection logs detailing the uncommon failed NTLM logins using an anonymous user account following PAN-OS exploitation.
Figure 8: Model alert connection logs detailing the uncommon failed NTLM logins using an anonymous user account following PAN-OS exploitation.

Conclusion

Darktrace Threat Research and SOC analysts increasingly detect spikes in malicious activity on internet-facing devices in the days following the publication of new vulnerabilities. The latest iteration of this trend highlighted how threat actors quickly exploited Palo Alto firewall using authentication bypass and remote command execution vulnerabilities to enable device compromise. A review of the post-exploitation activity during these events reveals consistent patterns of perimeter device exploitation, but also some distinct variations.

Prior campaigns targeting perimeter devices featured activity largely confined to the exfiltration of configuration data and some initial payload retrieval. Within the current campaign, analysts identified a broader scope post-compromise activity consisting not only of payloads downloads but also extensive C2 activity, reconnaissance, and coin mining operations. While the use of command line tools like curl featured prominently in prior investigations, devices were seen retrieving a generally wider array of payloads during the latest round of activity. The use of the Sliver C2 platform further differentiates the latest round of PAN-OS compromises, with evidence of Sliver activity in about half of the investigated cases.

Several of the endpoints contacted by the infected firewall devices did not have any OSINT associated with them at the time of the attack. However, these indicators were noted as unusual for the devices according to Darktrace based on normal network traffic patterns. This reality further highlights the need for anomaly-based detection that does not rely necessarily on known indicators of compromise (IoCs) associated with CVE exploitation for detection. Darktrace’s experience in 2024 of multiple rounds of perimeter device exploitation may foreshadow future increases in these types of comprise operations.

Credit to Adam Potter (Senior Cyber Analyst), Alexandra Sentenac (Senior Cyber Analyst), Emma Foulger (Principal Cyber Analyst) and the Darktrace Threat Research team.

References

[1]: https://labs.watchtowr.com/pots-and-pans-aka-an-sslvpn-palo-alto-pan-os-cve-2024-0012-and-cve-2024-9474/

[2]: https://security.paloaltonetworks.com/CVE-2024-9474

[3]: https://threatfox.abuse[.]ch/ioc/1346254/

[4]:https://www.virustotal.com/gui/file/4911396d80baff80826b96d6ea7e54758847c93fdbcd3b86b00946cfd7d1145b/detection

[5]: https://arcticwolf.com/resources/blog/arctic-wolf-observes-threat-campaign-targeting-palo-alto-networks-firewall-devices/

[6] https://www.immersivelabs.com/blog/detecting-and-decrypting-sliver-c2-a-threat-hunters-guide

[7] https://arcticwolf.com/resources/blog/arctic-wolf-observes-threat-campaign-targeting-palo-alto-networks-firewall-devices/

Appendices

Darktrace Model Alerts

Anomalous Connection / Anomalous SSL without SNI to New External

Anomalous Connection / Application Protocol on Uncommon Port

Anomalous Connection / Multiple Failed Connections to Rare Endpoint

Anomalous Connection / Multiple HTTP POSTs to Rare Hostname

Anomalous Connection / New User Agent to IP Without Hostname

Anomalous Connection / Posting HTTP to IP Without Hostname

Anomalous Connection / Rare External SSL Self-Signed

Anomalous File / EXE from Rare External Location

Anomalous File / Incoming ELF File

Anomalous File / Mismatched MIME Type From Rare Endpoint

Anomalous File / Multiple EXE from Rare External Locations

Anomalous File / New User Agent Followed By Numeric File Download

Anomalous File / Script from Rare External Location

Anomalous File / Zip or Gzip from Rare External Location

Anomalous Server Activity / Rare External from Server

Compromise / Agent Beacon (Long Period)

Compromise / Agent Beacon (Medium Period)

Compromise / Agent Beacon to New Endpoint

Compromise / Beacon for 4 Days

Compromise / Beacon to Young Endpoint

Compromise / Beaconing Activity To External Rare

Compromise / High Priority Tunnelling to Bin Services

Compromise / High Volume of Connections with Beacon Score

Compromise / HTTP Beaconing to New IP

Compromise / HTTP Beaconing to Rare Destination

Compromise / Large Number of Suspicious Failed Connections

Compromise / Large Number of Suspicious Successful Connections

Compromise / Slow Beaconing Activity To External Rare

Compromise / SSL Beaconing to Rare Destination

Compromise / Suspicious Beaconing Behavior

Compromise / Suspicious File and C2

Compromise / Suspicious HTTP and Anomalous Activity

Compromise / Suspicious TLS Beaconing To Rare External

Compromise / Sustained SSL or HTTP Increase

Compromise / Sustained TCP Beaconing Activity To Rare Endpoint

Device / Initial Attack Chain Activity

Device / New User Agent

MITRE ATT&CK Mapping

Tactic – Technique

INITIAL ACCESS – Exploit Public-Facing Application

RESOURCE DEVELOPMENT – Malware

EXECUTION – Scheduled Task/Job (Cron)

EXECUTION – Unix Shell

PERSISTENCE – Web Shell

DEFENSE EVASION – Masquerading (Masquerade File Type)

DEFENSE EVASION - Deobfuscate/Decode Files or Information

CREDENTIAL ACCESS – Brute Force

DISCOVERY – Remote System Discovery

COMMAND AND CONTROL – Ingress Tool Transfer

COMMAND AND CONTROL – Application Layer Protocol (Web Protocols)

COMMAND AND CONTROL – Encrypted Channel

COMMAND AND CONTROL – Non-Standard Port

COMMAND AND CONTROL – Data Obfuscation

IMPACT – Resource Hijacking (Compute)

List of IoCs

IoC         –          Type         –        Description

  • sys.traceroute[.]vip     – Hostname - C2 Endpoint
  • 77.221.158[.]154     – IP - C2 Endpoint
  • 185.174.137[.]26     – IP - C2 Endpoint
  • 93.113.25[.]46     – IP - C2 Endpoint
  • 104.131.69[.]106     – IP - C2 Endpoint
  • 95.164.5[.]41     – IP - C2 Endpoint
  • bristol-beacon-assets.s3.amazonaws[.]com     – Hostname - Payload Server
  • img.dxyjg[.]com     – Hostname - Payload Server
  • 38.180.147[.]18     – IP - Payload Server
  • 143.198.1[.]178     – IP - Payload Server
  • 185.208.156[.]46     – IP - Payload Server
  • 185.196.9[.]154     – IP - Payload Server
  • 46.8.226[.]75     – IP - Payload Server
  • 223.165.4[.]175     – IP - Payload Server
  • 188.166.244[.]81     – IP - Payload Server
  • bristol-beaconassets.s3[.]amazonaws[.]com/Y5bHaYxvd84sw     – URL - Payload
  • img[.]dxyjg[.]com/KjQfcPNzMrgV     – URL - Payload
  • 38.180.147[.]18/palofd     – URL - Payload
  • 90f6890fa94b25fbf4d5c49f1ea354a023e06510     – SHA1 - Associated to file /palofd
  • 143.198.1[.]178/7Z0THCJ     – URL - Payload
  • 8d82ccdb21425cf27b5feb47d9b7fb0c0454a9ca     – SHA1 - Associated to file /7Z0THCJ
  • fefd0f93dcd6215d9b8c80606327f5d3a8c89712     – SHA1 - Associated to file /7Z0THCJ
  • e5464f14556f6e1dd88b11d6b212999dd9aee1b1     – SHA1 - Associated to file /7Z0THCJ
  • 143.198.1[.]178/o4VWvQ5pxICPm     – URL - Payload
  • 185.208.156[.]46/lUuL095knXd62DdR6umDig     – URL - Payload
  • 185.196.9[.]154/ykKDzZ5o0AUSfkrzU5BY4w     – URL - Payload
  • 46.8.226[.]75/1.txt     – URL - Payload
  • 223.165.4[.]175/x6     – URL - Payload
  • 45.76.141[.]166/y.sh     – URL - Payload
  • repositorylinux[.]org/linux.sh     – URL - Payload
  • repositorylinux[.]org/cron.sh     – URL - Payload

‍

Continue reading
About the author
Adam Potter
Senior Cyber Analyst

Blog

/

December 11, 2024

/

Cloud

Cloud Security: Addressing Common CISO Challenges with Advanced Solutions

Default blog imageDefault blog image

Cloud adoption is a cornerstone of modern business with its unmatched potential for scalability, cost efficiency, flexibility, and net-zero targets around sustainability. However, as organizations migrate more workloads, applications, and sensitive data to the cloud it introduces more complex challenges for CISO’s. Let’s dive into the most pressing issues keeping them up at night—and how Darktrace / CLOUD provides a solution for each.

1. Misconfigurations: The Silent Saboteur

Misconfigurations remain the leading cause of cloud-based data breaches. In 2023 alone over 80%  of data breaches involved data stored in the cloud.1  Think open storage buckets or overly permissive permissions; seemingly minor errors that are easily missed and can snowball into major disasters. The fallout of breaches can be costly—both financially and reputationally.

How Darktrace / CLOUD Helps:

Darktrace / CLOUD continuously monitors your cloud asset configurations, learning your environment and using these insights to flag potential misconfigurations. New scans are triggered when changes take place, then grouped and prioritised intelligently, giving you an evolving and prioritised view of vulnerabilities, best practice and mitigation strategies.

2. Hybrid Environments: The Migration Maze

Many organizations are migrating to the cloud, but hybrid setups (where workloads span both on-premises and cloud environments) create unique challenges and visibility gaps which significantly increase complexity. More traditional and most cloud native security tooling struggles to provide adequate monitoring for these setups.

How Darktrace / CLOUD Helps:

Provides the ability to monitor runtime activity for both on-premises and cloud workloads within the same user interface. By leveraging the right AI solution across this diverse data set, we understand the behaviour of your on-premises workloads and how they interact with cloud systems, spotting unusual connectivity or data flow activity during and after the migration process.

This unified visibility enables proactive detection of anomalies, ensures seamless monitoring across hybrid environments, and provides actionable insights to mitigate risks during and after the migration process.

3. Securing Productivity Suites: The Last Mile

Cloud productivity suites like Microsoft 365 (M365) are essential for modern businesses and are often the first step for an organization on a journey to Infrastructure as a Service (IaaS) or Platform as a Service (PaaS) use cases. They also represent a prime target for attackers. Consider a scenario where an attacker gains access to an M365 account, and proceeds to; access sensitive emails, downloading files from SharePoint, and impersonating the user to send phishing emails to internal employees and external partners. Without a system to detect these behaviours, the attack may go unnoticed until significant damage is done.

How Darktrace helps:

Darktrace’s Active AI platform integrates with M365 and establishes an understanding of normal business activity, enabling the detection of abnormalities across its suite including Email, SharePoint and Teams. By identifying subtle deviations in behaviour, such as:

   •    Unusual file accesses

   •    Anomalous login attempts from unexpected locations or devices.

   •    Suspicious email forwarding rules created by compromised accounts.

Darktrace’s Autonomous Response can act precisely to block malicious actions, by disabling compromised accounts and containing threats before they escalate. Precise actions also ensure that critical business operations are maintained even when a response is triggered.

4. Agent Fatigue: The Visibility Struggle

To secure cloud environments, visibility is critical. If you don’t know what’s there, how can you secure it? Many solutions require agents to be deployed on every server, workload, and endpoint. But managing and deploying agents across sprawling hybrid environments can be both complex and time-consuming when following change controls, and especially as cloud resources scale dynamically.

How Darktrace / CLOUD Helps:

Darktrace reduces or eliminates the need for widespread agent deployment. Its agentless by default, integrating directly with cloud environments and providing instant visibility without the operational headache. Darktrace ensures coverage with minimal friction. By intelligently graphing the relationships between assets and logically grouping your deployed Cloud resources, you are equipped with real-time visibility to quickly understand and protect your environment.

So why Darktrace / CLOUD?

Darktrace’s Self-Learning AI redefines cloud security by adapting to your unique environment, detecting threats as they emerge, and responding in real-time. From spotting misconfigurations to protecting productivity suites and securing hybrid environments. Darktrace / CLOUD simplifies cloud security challenges without adding operational burdens.

From Chaos to Clarity

Cloud security doesn’t have to be a game of endless whack-a-mole. With Darktrace / CLOUD, CISOs can achieve the visibility, control, and proactive protection they need to navigate today’s complex cloud ecosystems confidently.

‍

[1] https://hbr.org/2024/02/why-data-breaches-spiked-in-2023

Continue reading
About the author
Adam Stevens
Director of Product, Cloud Security
Your data. Our AI.
Elevate your network security with Darktrace AI
