Introduction
Last month Darktrace identified an advanced malware infection on a customer’s device, which used a sophisticated Command & Control (C2) channel to communicate with the attacker. The attacker spent a lot of effort in engineering a C2 channel that was meant to stay covert for months.
The malware used changing domains generated by Domain Generation Algorithms (DGAs). It also sent HTTP POST requests to malicious IP addresses while using reputable domain names for the hostname of the HTTP requests in order to blend in with normal web browsing. The attacker effectively tried to make the C2 communication look like a user browsing the well-known car rental website sixt.com and the luxury watch manufacturer breitling.com. Without using blacklists or signatures, Darktrace instantly identified this anomalous behavior, and as a result, the security team immediately isolated the infected device.
Beaconing to DGA websites
A laptop appeared on the network and made anomalous HTTP requests. The initial HTTP requests were made to the DGA domain tequbvchrjar[.]com on IP address 66.220.23[.]114. Within the next two days, several hundred HTTP POST requests were made to either this domain or to jckdxdvvm[.]com or cqyegwug[.]com, all hosted on the IP 66.220.23[.]114. Darktrace identified this behavior as beaconing – repeated connections often used in C2 communication – to DGA-domains.
What made this even more suspicious is that the POST requests used 5 different Internet Explorer User Agents for the HTTP requests. This was unusual behavior for the laptop as Darktrace had previously only observed Google Chrome User Agents. Darktrace’s unsupervised machine learning identified the User Agents as new and in conjunction with the DGA-domains as unusual activity.

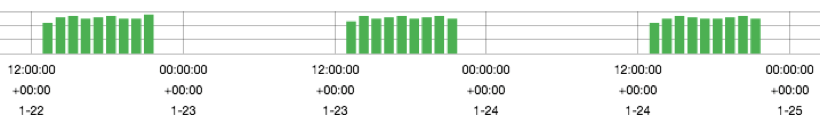

The beaconing followed a steady pattern during afternoon to evening hours when the laptop was being used. This is visualized in the following graph over several days:
Malicious beaconing to reputable domains

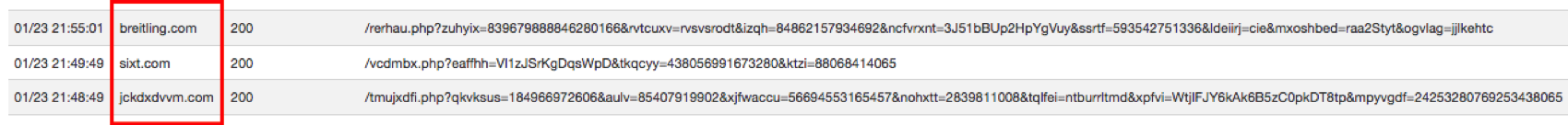

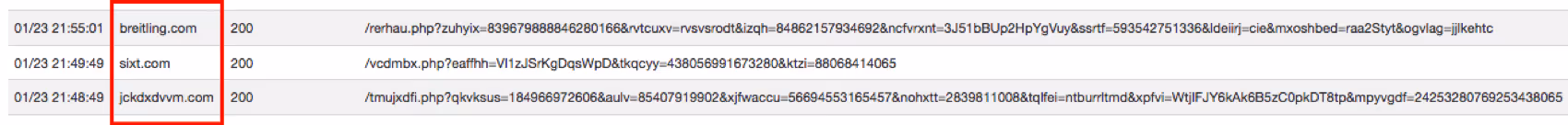

In addition to beaconing to the DGA-domains, the device made several hundred HTTP POST requests using the hostnames sixt.com and breitling.com. Both domains are rather well-known and no public record exists of these domains having been compromised. The HTTP POST requests were made without prior GET requests and continued for several days – this is highly unusual behavior and does not resemble a user browsing those websites.
Upon closer inspection it became clear that the malware used indeed the hostnames sixt.com and breitling.com for the HTTP requests – but it was sending the HTTP requests to IP addresses owned by the attacker, not to the IP addresses that sixt.com and breitling.com resolve to on non-infected devices.
The requests for sixt.com were sent to the IP 184.105.76[.]250 while the requests for breitling.com were sent to 64.71.188[.]178. These two IP addresses, as well as the IP address hosting the DGA-domains, were hosted in the same ASN, AS6939 Hurricane Electric, which made this behavior even more suspicious. It is unlikely that all domains would be hosted in the same ASN by chance.
The malware authors used the trick of beaconing to well-known hostnames to circumvent reputation-based security controls and domain-based filters such as domain-blacklists, and to divert attention from security analysts investigating the beaconing. After all, the behavior looked on the surface like a user was browsing rental cars and luxury watches.
Further rapid investigation
Darktrace quickly revealed more details about the C2 communication. All requests were made to suspiciously-looking PHP endpoints and returned HTTP status code 200, ‘OK’, in all cases. The following shows an example of requests to three domains.
Darktrace instantly alerted on this as anomalous behavior:

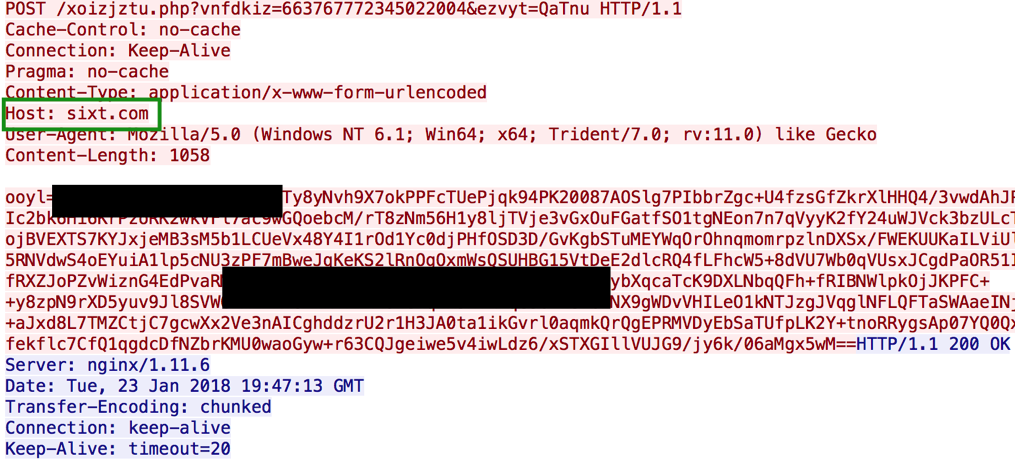

A PCAP was directly downloaded from the Darktrace interface to inspect the suspicious C2 traffic:
The actual POST data appears to be encoded. Using an encoded POST request and a Content-Type of ‘x-www-form-urlencoded’ is commonly seen in malware communication.
Actively developed malware strain
It appears that this malware strain is under active development.
Open source research suggests that malware that behaves similarly has been circulated at least since the end of 2016. Some sources have attributed the malware families Razy and Nymaim to the executables seen. However, little research on these strains exist and both malware strains are generic in nature. Below are two samples from 2016:
These pieces of malware likely represent a prior version of the malware identified by Darktrace. The 2016 version also communicated with sixt.com and breitling.com, but also made HTTP requests to carvezine.com and sievecnda.com. No DGA domains were observed in the 2016 version.
The PHP endpoints in the URI have also changed. In the version from 2016, the PHP endpoints always ended in ‘/[DGA-string]/index.php’. C2 traffic is often seen to be sent to ‘index.php’ endpoints. Defenders started monitoring the static URI Indicator of Compromise (IoC) ‘index.php’. The malware authors know this as well and have adapted their C2 communication accordingly. As shown in the above screenshots, the PHP endpoint is now in the format of ‘[DGA-string].php’. This further shows that legacy controls – such as static monitoring for quickly outdated Indicators of Compromise – do not scale in today’s threat landscape.
Conclusion
Although the malware authors intended for their implant to stay covert and defeat common security controls, Darktrace instantly alerted on the anomalous behavior. Darktrace’s detections could not have been clearer. The following graphic shows a part of the communication exhibited by the infected device around the time of the infection. Blue lines represent outgoing connections from the device. Every colored dot represents a high-level Darktrace alert:
Using no blacklists or signatures, Darktrace detected this highly anomalous malware behavior instantly. A piece of malware that was meant to stay covert for months was quickly identified using anomaly detection on network data.
Darktrace cyber analysts are world-class experts in threat intelligence, threat hunting and incident response, and provide 24/7 SOC support to thousands of Darktrace customers around the globe. Inside the SOC is exclusively authored by these experts, providing analysis of cyber incidents and threat trends, based on real-world experience in the field.
Chinese APT Campaign Targets Entities with Updated FDMTP Backdoor
Darktrace have identified activity consistent with Chinese-nexus operations, a Twill Typhoon-linked campaign targeting customer environments, primarily within the Asia-Pacific & Japan (APJ) region
Beginning in late September 2025, multiple affected hosts were observed making requests to domains impersonating content delivery networks (CDNs), including infrastructure masquerading as Yahoo- and Apple-affiliated services. Across these cases, Darktrace identified a consistent behavioral execution pattern: the retrieval of legitimate binaries alongside malicious Dynamic Link Libraries (DLLs), enabling sideloading and execution of a modular .NET-based Remote Access Trojan (RAT) framework.
The activity aligns with patterns described in Darktrace’s previous Chinese-nexus operations report, Crimson Echo. In this case, observed modular intrusion chains built on legitimate software, and staged payload delivery. Threat actors retrieve legitimate binaries alongside configuration files and malicious DLLs to enable sideloading of a .NET-based RAT.
Observed Campaign
Across cases, the same ordered sequence appears: retrieval of a legitimate executable, (2) retrieval of a matching .config file, (3) retrieval of the malicious
DLL, (4) repeated DLL downloads over time, and (5) command-and-control (C2) communication. The .config file retrieves a malicious binary, while the legitimate binary provides a legitimate process to run it in.
Darktrace assesses with moderate confidence that this activity aligns with publicly reported Twill Typhoon tradecraft. The observed use of FDMTP, DLL sideloading, and overlapping infrastructure is consistent with previously observed operations, though not unique to a single actor. While initial access was not directly observed, previous Twill Typhoon campaigns have typically involved spear-phishing.
What Darktrace Observed
Since late September 2025, Darktrace has observed multiple customer environments making HTTP GET requests to infrastructure presenting as “CDN” endpoints for well-known platforms (including Yahoo and Apple lookalikes). Across cases, the affected hosts retrieved legitimate executables, then matching .config files (same base filename), then DLLs intended for sideloading. The sequencing of a legitimate binary + configuration + DLL has been previously observed in campaigns linked to China-nexus threat actors.
In several cases, affected hosts also issued outbound requests to a /GetCluster endpoint, including the protocol=Dotnet-Tcpdmtp parameter. This activity was repeatedly followed by retrieval of DLL content that was subsequently used for search-order hijacking within legitimate processes.
In the September–October 2025 cases, Darktrace alerting commonly surfaced early-stage registration and C2 setup behaviors, followed by retrieval of a DLL (e.g., Client.dll) from the same external host, sometimes repeatedly over multiple days, consistent with establishing and maintaining the execution chain.
In April 2026, a finance-sector endpoint initiated a series of GET requests to yahoo-cdn[.]it[.]com, first fetching legitimate binaries (including vshost.exe and dfsvc.exe), then repeatedly retrieving associated configuration and DLL components (including dfsvc.exe.config and dnscfg.dll) over an 11-day window. The use of both Visual Studio hosting and OneClick (dfsvc.exe) paths are used to ensure the malware can run in the targeted environment.
Technical Analysis
Initial staging and execution
While the initial access method is unknown, Darktrace security researchers identified multiple archives containing the malware.
A representative example includes a ZIP archive (“test.zip”) containing:
A legitimate executable: biz_render.exe (Sogou Pinyin IME)
A malicious DLL: browser_host.dll
Contained within the zip archive named “test.zip” is the legitimate binary “biz_render.exe”, a popular Chinese Input Method Editor (IME) Sogou Pinyin.
Alongside the legitimate binary is a malicious DLL named “browser_host.dll”. As the legitimate binary loads a legitimate DLL named “browser_host.dll” via LoadLibraryExW, the malicious DLL has been named the same to sideload the malicious DLL into biz_render.exe. By supplying a malicious DLL with an identical name, the actor hijacks execution flow, enabling the payload to execute within a trusted process.
The legitimate binary invokes the function GetBrowserManagerInstance from the sideloaded “browser_host.dll”, which then performs XOR-based decryption of embedded strings (key 0x90) to resolve and dynamically load mscoree.dll.
The DLL uses the Windows Common Language Runtime (CLR) to execute managed .NET code inside the process rather than relying solely on native binaries. During execution, the loader loads a payload directly into memory as .NET assemblies, enabling an in-memory execution.
C2 Registration
A GET request is made to:
GET /GetCluster?protocol=DotNet-TcpDmtp&tag={0}&uid={1}
with the custom header:
Verify_Token: Dmtp
This returns Base64-encoded and gzip-compressed IP addresses used for subsequent communication.
Figure 2: Decoded IPs.
Staged payload retrieval
Subsequent activity includes retrieval of multiple components from yahoo-cdn.it[.]com. The following GET requests are made:
Dfsvc.exe is the legitimate Windows ClickOnce Engine, part of the .NET framework used for updating ClickOnce Applications. Accompanying dfsvc.exe is a legitimate dfsvc.exe.config file that is used to store configuration data for the application. However, in this instance the malware has replaced the legitimate dfsvc.exe.config with the one retrieved from the server in: C:\Windows\Microsoft.NET\Framework64\v4.0.30319.
Additionally, vhost.exe the legitimate Visual Studio hosting process is retrieved from the server, along with “Microsoft.VisualStudio.HostingProcess.Utilities.Sync.dll” and “config.etl”. The DLL is used to decrypt the AES encrypted payload in config.etl and load it. The encrypted payload is dnscfg.dll, which can be loaded into vshost instead of dfsvc, and may be used if the environment does not support .NET.
Figure 3: ClickOnce configuration.
The malicious configuration disables logging, forces the application to load dnscfg.dll from the remote server, and uses a custom AppDomainManager to ensure the DLL is executed during initialization of dfsvc.exe. To ensure persistence, a scheduled task is added for %APPDATA%\Local\Microsoft\WindowsApps\dfsvc.exe.
Core payload
The DLL dnscfg.dll is a .NET binary named Client.TcpDmtp.dll. The payload is a heavily obfuscated backdoor that generates its logic at runtime and communicates with the command and control (C2) over custom TCP, DMTP (Duplex Message Transport Protocol) and appears to be an updated version of FDMTP to version 3.2.5.1
Once connected, the malware enters a persistent loop (LoopMessage), enabling it to receive commands from the remote server.
Figure 5: DMTP Connect function.
Rather than referencing values directly, they are retrieved through containers that are resolved at runtime. String values are stored in an encrypted byte array (_0) and decrypted by a custom XOR-based string decryption routine (dcsoft). The lower 16 bits of the provided key are XORed with 0xA61D (42525) to derive the initial XOR key, while subsequent bits define the string length and offset into the encrypted byte array. Each character is reconstructed from two encrypted bytes and XORed with the incrementing key value, producing the plaintext string used by the payload.
Figure 6: Decrypted strings.
Embedded in the resources section are multiple compressed binaries, the majority of which are library files. The only exceptions are client.core.dll and client.dmtpframe.dll.
Figure 7: Resources.
Modular framework and plugins
The payload embeds multiple compressed libraries, notably:
client.core.dll
client.dmtpframe.dll
Client.core.dll is a core library used for system profiling, C2 communication and plugin execution. The implant has the functionality to retrieve information including antivirus products, domain name, HWID, CLR version, administrator status, hardware details, network details, operating system, and user.
Figure 8: Client.Core.Info functions.
Additionally, the component is responsible for loading plugins, with support for both binary and JSON-based plugin execution. This allows plugins to receive commands and parameters in different formats depending on the task being performed.
The framework handles details such as plugin hashes, method names, task identifiers, caller tracking, and argument processing, allowing plugins to be executed consistently within the environment. In addition to execution management, the library also provides plugins with access to common runtime functionality such as logging, communication, and process handling.
Figure 9: Client.core functions.
client.dmtpframe.dll handles:
DMTP communication
Heartbeats and reconnection
Plugin persistence via registry:
HKCU\Software\Microsoft\IME\{id}
Client.dmtpframe.dll is built on the TouchSocket DMTP networking library and continues to manage the remote plugins. The DLL implements remote communication features including heartbeat maintenance, reconnection handling, RPC-style messaging, SSL support, and token-based verification. The DLL also has the ability to add plugins to the registry under HKCU/Software/Microsoft/IME/{id} for persistence.
Plugins observed
While the full set of plugins remains unknown, researchers were able to identify four plugins, including:
Persist.WpTask.dll - used to create, remove and trigger scheduled Windows tasks remotely.
Persist.registry.dll - used to manage registry persistence with the ability to create, and delete registry values, along with hidden persistence keys.
Persist.extra.dll - used to load and persist the main framework.
Assist.dll - used to remotely retrieve files or commands, as well as manipulate system processes.
Figure 10: Plugins stored in IME registry.
Figure 11: Obfuscated script in plugin resources.
Persist.extra.dll is a module that is used to load a script “setup.log” to load and persist the main framework. Stored within the resources section of the binary is an obfuscated script that creates a .NET COM object that is added to the registry key HKCU\Software\Classes\TypeLib\ {9E175B61-F52A-11D8-B9A5-505054503030} \1.0\1\Win64 for persistence. After deobfuscating this script, another DLL is revealed named “WindowsBase.dll”.
Figure 12: Registry entry for script.
The binary checks in with icloud-cdn[.]net every five minutes, retrieves a version string, downloads an encrypted payload named checksum.bin, saves it locally as C:\ProgramData\USOShared\Logs\checksum.etl, decrypts it with AES using the hardcoded key POt_L[Bsh0=+@0a., and loads the decrypted assembly directly from memory via Assembly.Load(byte[]). The version.txt file acts as an update marker so it only re-downloads when the remote version changes, while the mutex prevents duplicate instances.
Figure 13: USOShared/Logs.
Checksum.etl is decrypted with AES and loaded into memory, loading another .NET DLL named “Client.dll”. This binary is the same as “dnscfg.dll” mentioned at the start and allows the threat actors to update the main framework based on the version.
Conclusion
Across cases, Darktrace consistently observed the following sequence:
Retrieval of legitimate executables
Retrieval of DLLs for sideloading
C2 registration via /GetCluster
This approach is consistent with broader China-nexus tradecraft. As outlined in Darktrace’s Crimson Echo report, the stable feature of this activity is behavioral. Infrastructure rotates and payloads can change, but the execution model persists. For defenders, the implication is straightforward: detection anchored to individual indicators will degrade quickly. Detection anchored to a behavioral sequence offer a far more durable approach.
Credit to Tara Gould (Malware Research Lead), Adam Potter (Senior Cyber Analyst), Emma Foulger (Global Threat Research Operations Lead), Nathaniel Jones (VP, Security & AI Strategy)
Edited by Ryan Traill (Content Manager)
Appendices
A detailed list of detection models and triggered indicators is provided alongside IoCs.
